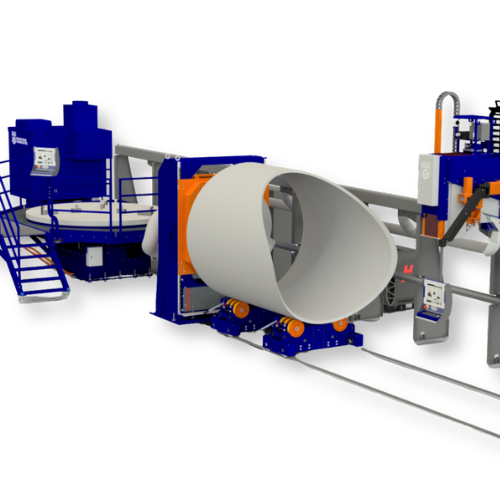

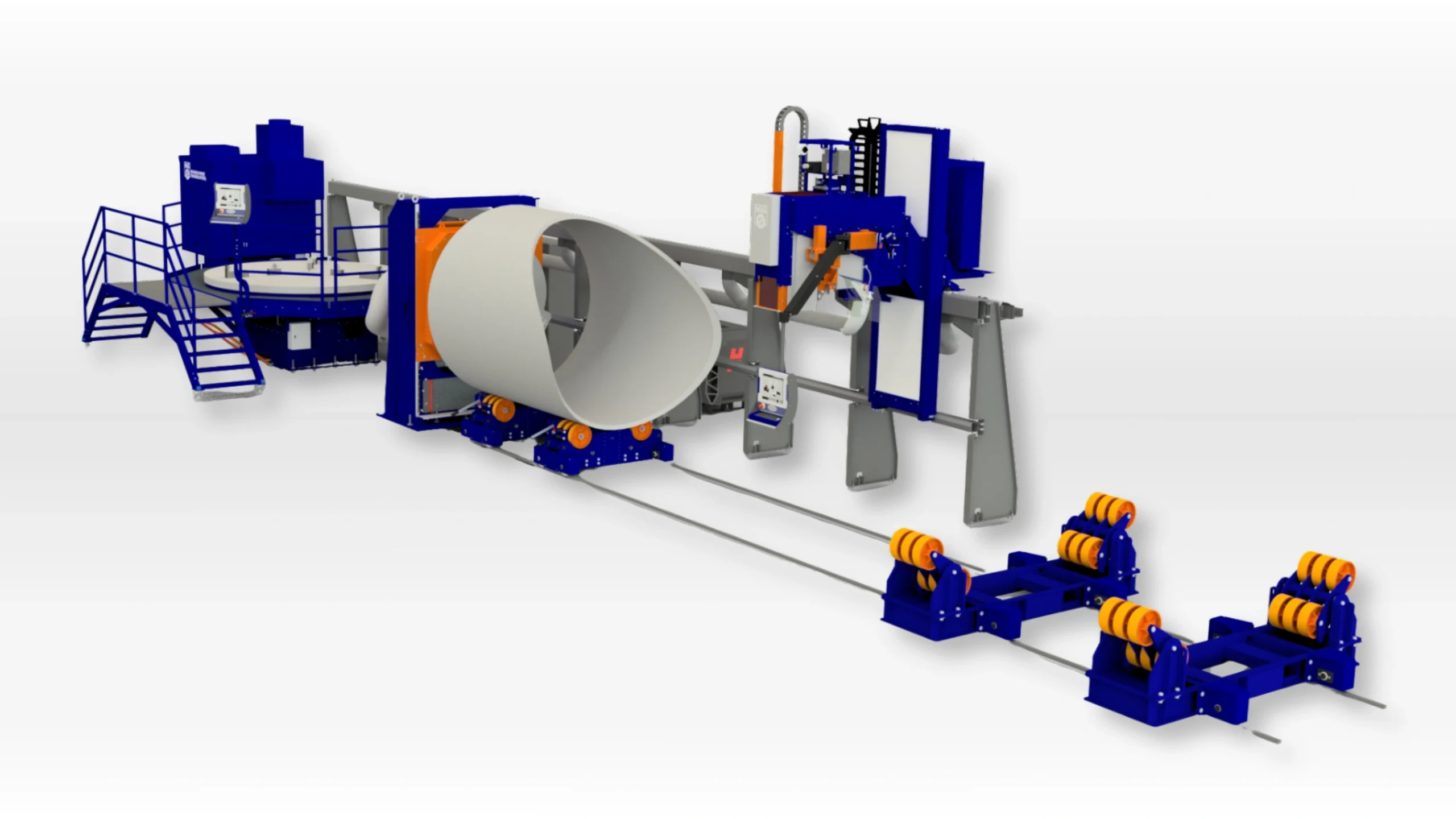

Product Tour SPC 1500 - 4000 VC
Heavy duty CNC machine for Pipe and Vessel cutting.
WATCH VIDEO
Cut a Complete Vessel on One Machines
The SPC 1500 – 4000 VC offers all the benefits of a heavy-duty pipe cutting machine while adding the ability to cut vessel heads, enabling you to use a single machine for your entire vessel. Pipes are accurately profiled using the chuck-driven system, while vessel heads are processed on a rotary table for precise marking, straight hole cutting, and weld preparations.
Specifications
Profile & Dimensions
- Profile
- Machine type
- Minimum
- Maximum
 | SPC 1500 VC | 100 mm | 1525 mm |
 | SPC 1500 VC | 610 mm | 1525 mm |
| SPC 2000 VC | 100 mm | 2035 mm |
| SPC 2000 VC | 550 mm | 2035 mm |
| SPC 2500 VC | 200 mm | 2500 mm |
| SPC 2500 VC | 550 mm | 2500 mm |
| SPC 3000 VC | 300 mm | 3000 mm |
| SPC 3000 VC | 550 mm | 3000 mm |
| SPC 4000 VC | 400 mm | 4000 mm |
| SPC 4000 VC | 550 mm | 4000 mm |
Additional Specifications
- Oxyfuel Cutting
- High Definition Plasma cutting
- Plasma Powersource: Hypertherm or Kjellberg
- Plasma marking with cutting torch
- Maximum Cutting Angle: 70 degrees
- CAD Connection
Discover the possibilities of the SPC 1500 - 4000 VC
Vessel Head Cutting
Cut holes in vessel heads, including support for K-bevels.
Tapered Cuts
Make tapered cuts, even with a ratio of 1:4.
Advanced Beveling Options
Cut holes with a variable fit line, optimizing weld preparation and weldability.
Accurate Hole Cutting
The SPC 1500 – 3000 VC is designed to efficiently cut the entire vessel, including the vessel head and any necessary holes.

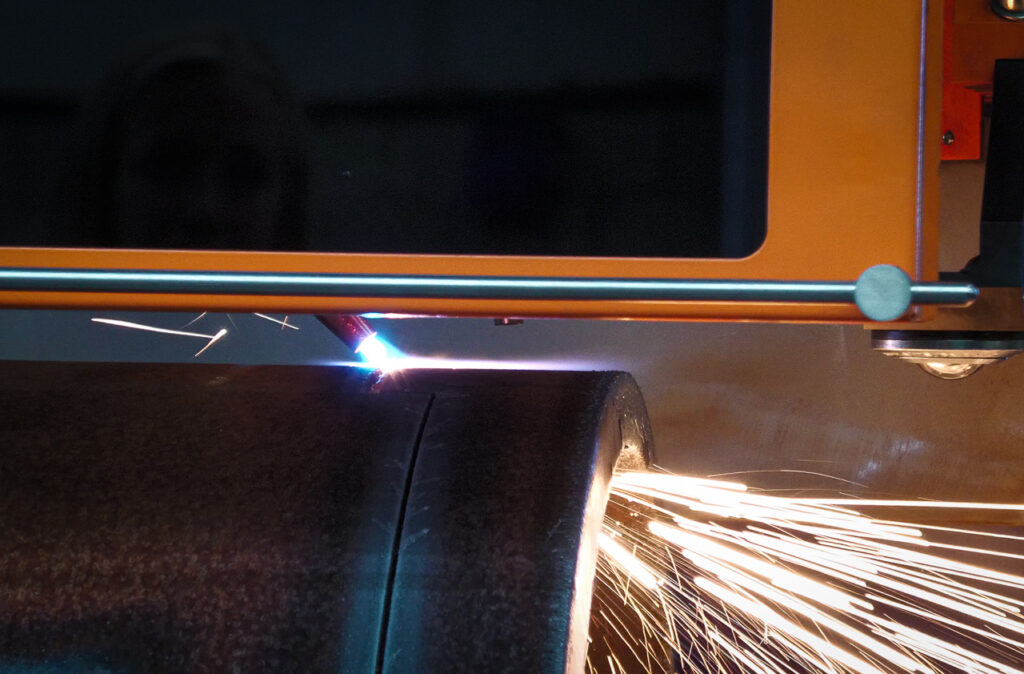

Cut with Oxyfuel
Oxyfuel cutting is a reliable, accurate and competitive cutting technique used for the cutting of mild steel. The very first HGG pipe profiling machines, made back in 1984, were equipped with oxyfuel cutting equipment.
Cutting heavy walled pipes with oxyfuel can be a challenging job. And you want to avoid making mistakes during the cutting of these expensive pipes. We developed a gas control system which creates the correct gas mixture based on material and wall thickness. Hot or cold, rusty or clean material, requires different cutting settings. For fine tuning the operator can overrule the gas presets by the dials on the machine interface.
Including pierce assist cutting to get the piercing right each time
The pierce assist function guides the operator to achieve the best combination of torch position, gas mixture and pressure of the pre-heater and the cutting oxygen.
When thick-walled material is pre-heated for too long, the input of oxygen will cause a lot of spatters and create a large crater with an excess of liquid slag. This spatter will stick to the nozzle and negatively affect the gas flow and thus cutting process.
Insufficient pre-heating will mean that the full wall thickness has not reached the ignition temperature to maintain the exothermic process. The process will stop halfway, and the operator will have to try again at another starting point resulting in damage to the part and will cause more time spent on grinding and welding.
or with Plasma
HGG has distinguished itself as a pioneer in CNC plasma cutting. Since 1994, HGG has supplied over 500 3D profiling machines with plasma cutting technology worldwide and keeps innovating with plasma cutting technology to stay on top of the latest developments.
HGG offers unique features that further improve the quality of plasma cutting by compensating for plasma characteristics and/or prolonging consumable lifetime.
We support both Kjellberg and Hypertherm plasma sources. Two well experienced and industry leading choices.
With Angled Piercing technology to protect your plasma consumables
Plasma consumables can become costly if you need to replace them regularly. The angled piercing routine keeps the nozzle and other consumables out of harm’s way, saving you time and money.
Plasma consumables can become costly if you need to replace them regularly. The angled piercing routine keeps the nozzle and other consumables out of harm’s way, saving you time and money.
Plasma consumables can become costly if you need to replace them regularly. The angled piercing routine keeps the nozzle and other consumables out of harm’s way, saving you time and money.
Advanced Rotary Table for 3D Vessel Cutting and Profiling
The rotary table showcases the full potential of HGG’s vessel cutting machine, providing full 3D profiling of complex radial and hillside holes, including weld preparation with V and K bevels on dishes. A dish is a complex three-dimensional object used for profiling.
The rotary table holds any size dish up to 3.000 mm (118 “). The table is positioned on a heightened structure with protective bars for safety. The structure houses the rotary table and has jaws at four positions to center and secure the dish with clamping force. A fume extraction point beneath the rotary table, and another to the side for straight flange cutting, can be installed and connected to a filtration unit.
Achieve ultimate precision with our patented biaxial cutting head
The patented biaxial cutting head puts HGG pipe cutting machines in a league of their own. The cutting head, which moves up and down, rotates around its axis, and tilts the cutting torch into the correct position, provides unmatched pipe cutting accuracy. The rotational and pitching movements of the biaxial cutting head, together with the longitudinal movement of the cutting trolley and the height adjustment of the cutting head, provide all the necessary directions for outstanding 3D profiling.
Top-of-Class Pipe Cutting Quality Provided by 5 CNC Axes
HGG’s pipe cutting machines achieve precision through five key movements. The combination of all axis ensures top of class cutting quality.
The main drive rotation (1) ensures accurate pipe rotation by securely clamping the pipe to prevent slipping. The longitudinal cutting trolley (2) travels along the entire length of the main frame, enabling precise cuts. The biaxial cutting head (3) rotates to align the cutting torch with the virtual cutting path, and its pitch movements (4) angle the torch to create beveled cuts. Additionally, the cutting head’s height adjustment (5) allows the machine to accommodate pipes of varying diameters while maintaining the correct torch-to-material distance.
Optionally a sixth movement can be added. This transversal movement of the cutting head makes holecutting without pipe rotation, otherwise known as PerfectHole™ technology, possible.
Eliminate Material waste with jaws suited to your needs

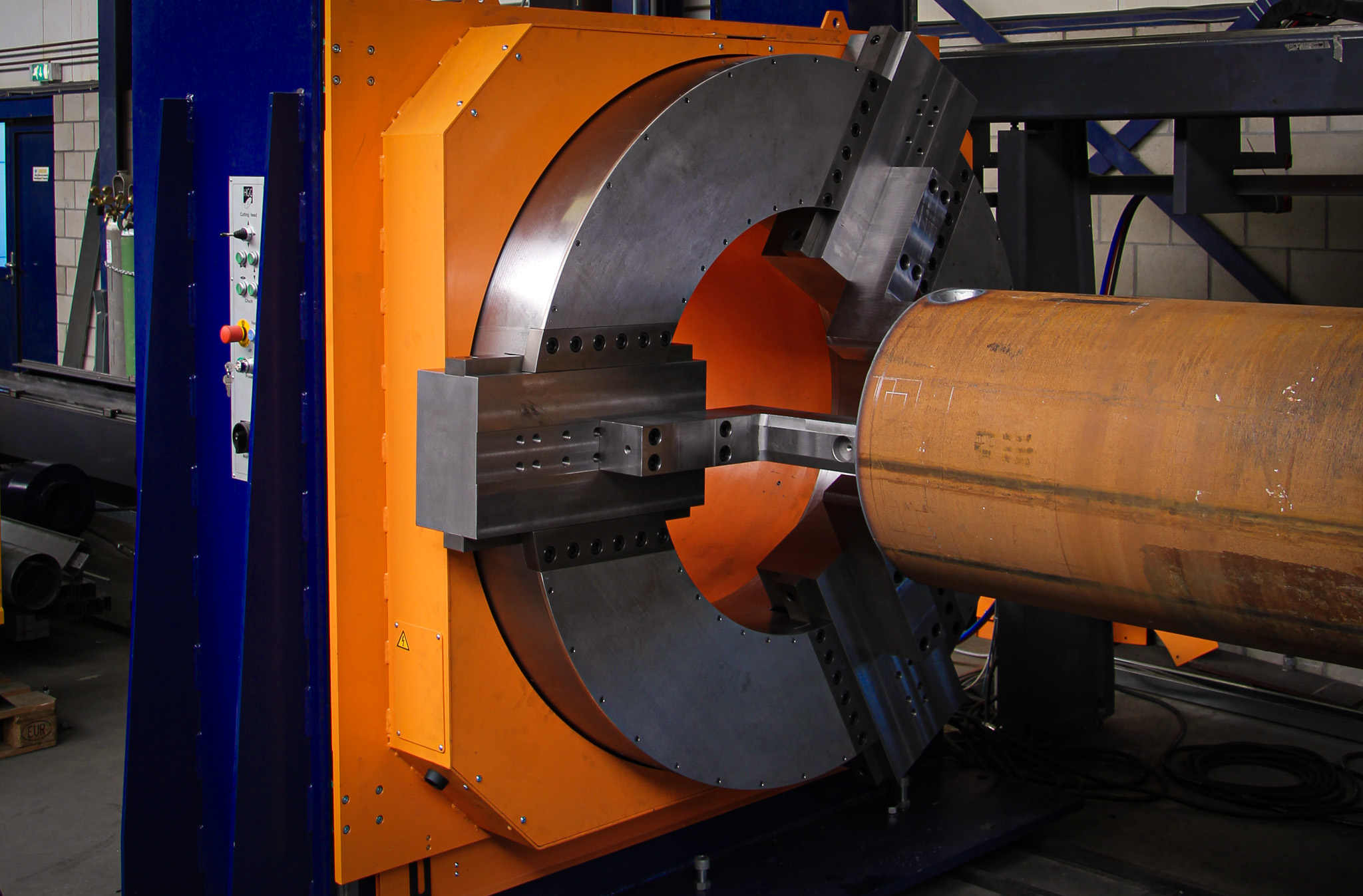

The chuck and jaw mounts, designed by HGG, are milled from a solid block of steel, ensuring high material consistency and strength. This contributes to excellent accuracy.
Standard Jaws
The hole through the center of the chuck allows for cutting on both sides of the main drive, depending on the chuck’s maximum hole diameter. The ‘Standard Jaws’ are ideal for this purpose.
Long Jaws
The ‘Long Jaws’ cut on the front side of the main drive, saving scrap length, while ‘Standard Jaws’ require extra pipe length to avoid collisions with the main drive. ‘Long Jaws’ solve this by clamping the pipe further from the main drive.
Zero Scrap Jaws
‘Zero Scrap Jaws’ eliminate the need for extra material. These jaws, protected by copper plates, are perfect for cutting straight chamfers with both X/K bevels and single cuts.

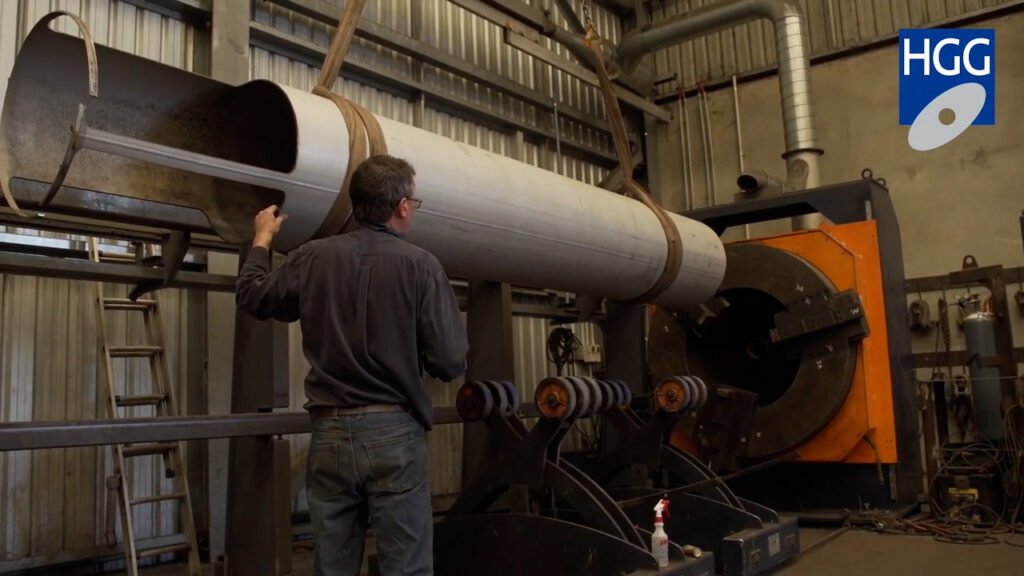

Featured Case Study
'A large vessel used to take us 40-50 hours to cut. Now we we can cut it in less than 4 hours!'
Kurt Schaerer - Enerflex
Related Case Studies

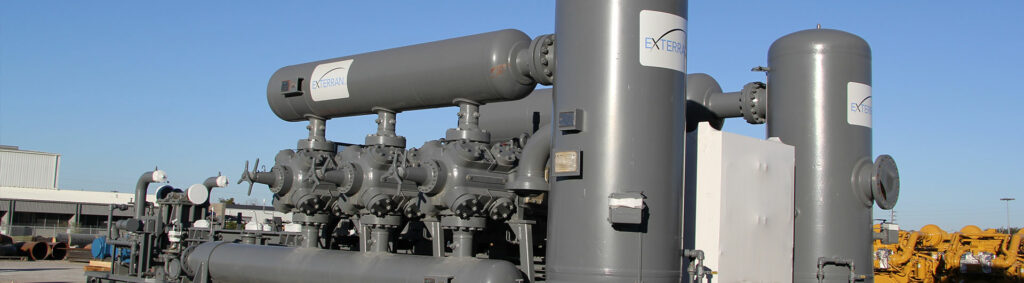

Process Piping
