SPC 660 – 2000 RB

Industry:

Offshore, Process, Steel construction

Process:

Oxyfuel, Plasma

Profile:

Product Description

The SPC 660 – 2000 RB chuck-type pipe cutting line combines the roller bed principle for an uninterrupted material flow, while controlling the rotation of the material with a floating chuck registering linear displacement. Pipes up to 2035 mm (80 “) in diameter can be processed with a wide range of part lengths and profiling shapes. With its adjustable characteristics, the SPC 660 – 2000 RB is fully customized to fit your requirements.

Product features

Unmatched 3D cutting capabilities

The cutting head allows cutting angles up to 70 degrees. Ideal for complicated X- and K- weld preparations with transition zones on heavy walled material.

Combining an accurate chuck-type machine with semi-automatic logistics

This rollerbed machine gives the best of both worlds. A logistic system with conveyors for semi-automatic material handling and the rotation accuracy of a chuck-type machine.

Highly configurable to match your workshop layout

Efficient material flow in your workshop is important to minimize material handling time. The logistic system of this machine can be configured to match the required flow in your workshop.

More information?

Receive personalized advice or a tailored proposal based on your needs and preferences.

Sales Support

Bart Scheringa

Area Sales Manager Europe

This is why our customers choose us:

Product Tour SPC 660 - 2000 RB

Pipe Cutting Line | Roller bed type with floating chuck.

WATCH VIDEO

Patented Biaxial Cutting Head

The patented biaxial cutting head, with vertical, rotational, and tilting movements, ensures unmatched pipe cutting accuracy.Plasma cutting

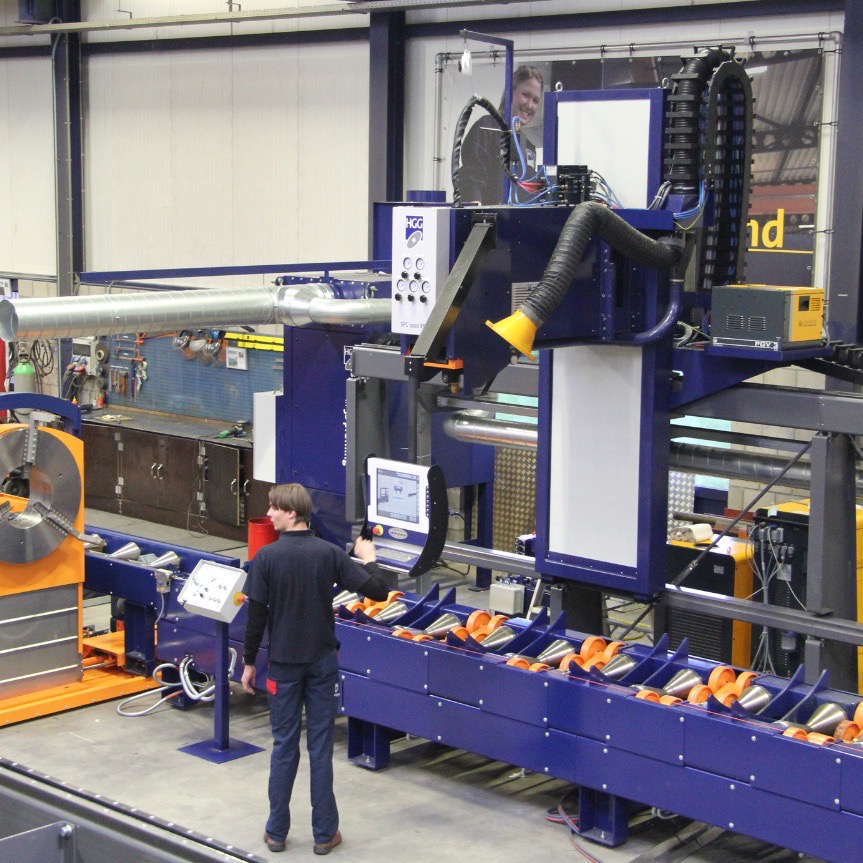

Easy-to-use Machine interface

The machine is operated with a central touch screen and a robust industrial keyboard, providing the operator with easy and efficient control over its functions.Machine interface

Optimized Material Flow

Combine continuous material flow with extreme accuracy. Load the material onto the infeed buffer table, feed it into the cutting area, and process it from the outfeed buffer table.Safety Fence

Plasma Cutting with Hypertherm or Kjellberg

HGG supports both Kjellberg and Hypertherm plasma sources. Two well experienced and industry leading choices.Installed & Commissioned in 2 days

Double-Wheeled bogies enhance cutting accuracy

Double-wheeled bogies smooth out the reinforcement height of a weld bead, avoiding any unwanted movement of the pipe.Torch

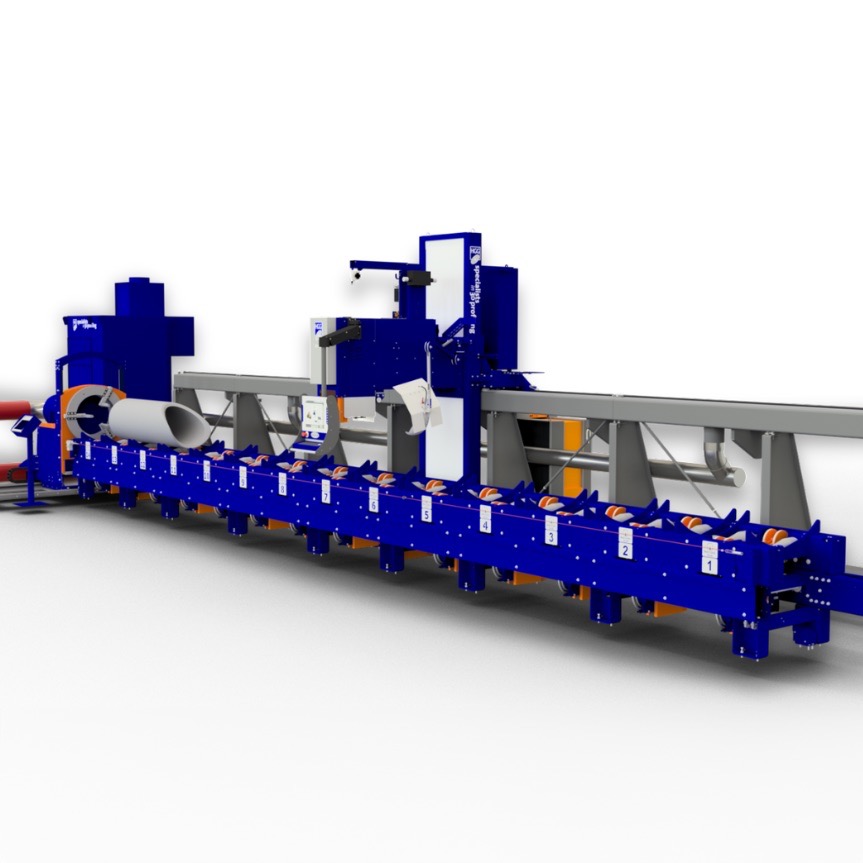

Combine the Best of Both Worlds

The SPC 660–2000 RB features roller bed logistics, available in both single-sided and double-sided configurations. Depending on your application and the space available in your workshop, you can incorporate infeed and outfeed tables into the machine layout. This machines provides a high-speed pipe cutting machine capable of handling heavy-walled materials, along with integrated logistics to efficiently move the pipe through your shop.

Specifications

Profile & Dimensions

SPC 660 RB	48 mm	660 mm
SPC 1200 RB	75 mm	1225 mm
SPC 2000 RB	100 mm	2035 mm

Additional Specifications

Oxyfuel cutting
Plasma cutting
Plasma marking with cutting torch
Plasma powersource: Hypertherm or Kjellberg
Maximum Cutting Angle: 70 degrees
CAD Connection
Material thickness between 3 - 50 mm or 1/8 - 2 inch

Discover the possibilities of the SPC 660 - 2000 RB

Heavy Walled Pipes

This heavy-duty machine range is designed for thick-walled, heavy-weight pipes, and even supports plasma cutting on extreme wall thicknesses.

Tapered Cuts

Make tapered cuts, even with a ratio of 1:4.

Advanced 3D Beveling

The machine supports complex beveling, including K-bevels and transition zones, offering the most advanced bevel cutting solution on the market.

Hole Cutting

Ideal for cutting vessels with accurate holes.

Independent bogies for bow-shaped pipe compensation

The bogies in the roller bed for pipe support can move up and down independently, allowing for immediate part outfeed after cutting. Lowering several sets of roller wheels also compensates for bow-shaped pipes. These adjustments combine the rotational accuracy of the chuck with the efficient material flow of roller beds.

Smart creep compensation to maximize cutting accuracy

The pipe is supported on the roller bed by multiple wheel sets. Any distortion in the pipe will cause the pipe to creep (move longitudinally) along the roller bed. The longer the pipe, the greater the chance of creep.

The base plate of the main drive is mounted on linear rails, allowing the main drive unit to move longitudinally. This longitudinal movement is registered by an encoder and compensated by the cutting trolley, which uses this input to offset the cutting path for accuracy. Another benefit of this system is that it avoids any tension between the roller bed and the main drive, preventing damage to the machine.

Configurable with a sliding chuck for efficient material handling

The SPC 660 – 2000 RB is designed to be highly configurable to match your workshop’s material flow. One of the options option is to equip the machine with a sliding chuck, enabling material infeed from both the front and rear of the chuck. This setup simplifies material logistics and eliminates the need for an overhead crane.

Featured Case Study

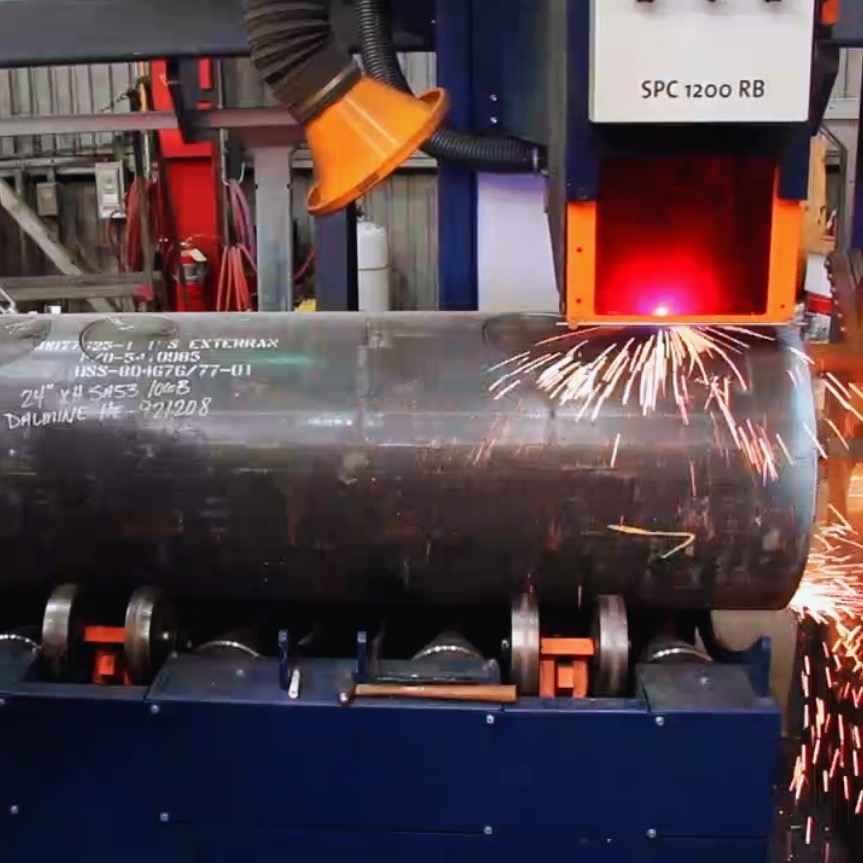

‘Due to the high productivity of the SPC 1200 RB, we should have our full pay-back on the machine within 3 months from the purchase!’

Ricky Cruz - Exterran

Related Case Studies

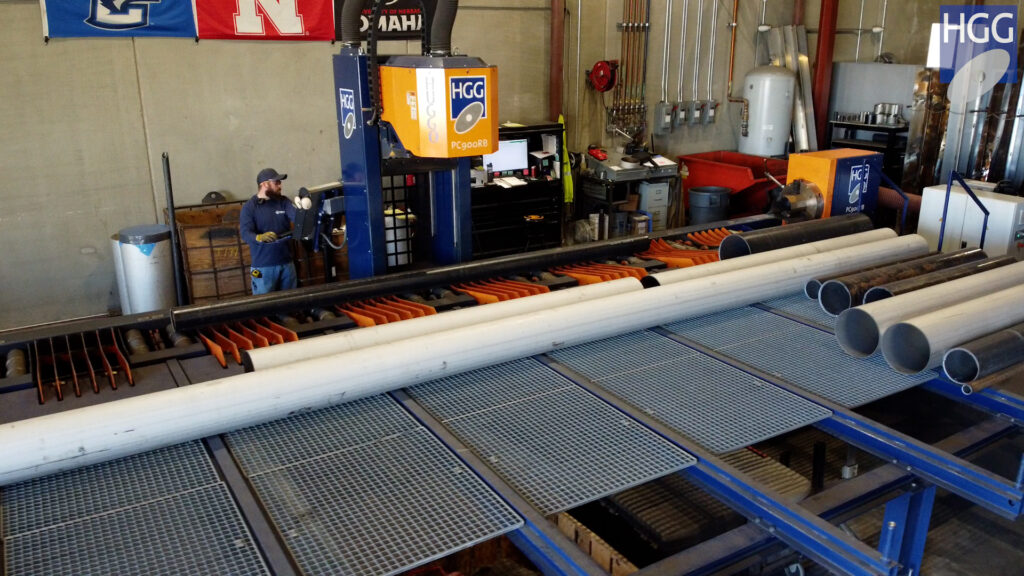

Shaving off 6 days of cutting time with the ProCutter 900 RB

Steel Construction

Client

MMC Contractors

Industry

Steel construction

Machine

ProCutter 900 RB

Location

Omaha, the United States

Automating to stay on top of Australia’s steel processing market

Steel Construction

Client

Southern Queensland Steel

Industry

Steel Construction

Machine

RPC 1200 Mk3

Location

Queensland, Australia

ProCAM Software

Connect Directly with Leading CAD/CAM Companies

Seamlessly connect to your existing CAD systems

We partnered with several leading CAD/CAM companies to ensure seamless integration and the safe and easy transfer of data from your design to our machine. Integrate directly from TEKLA, SDS2, M-Suite, PypeServer, Foran, Stratus, STRUMIS, Ship Constructor, and many more.

Efficient and Easy work preparation

Design parts efficiently with HGG’s extensive library of predefined macro shapes. Visualize your creation before the first cut and catch any missing holes or shapes to ensure perfection. Utilize our advanced nesting algorithms to maximize material usage and dramatically reduce waste.

Quick transition from CAD to cutting

Simply upload your design from ProCAM to the machine, select the files you wish to cut, and verify them as needed. Push a button and watch the machine do the work. Experience the ease and efficiency of letting technology do the precision-cutting for you.

Flawless assembly through precise layout marking

Reduce human errors in measuring and positioning parts with accurate marking options, which facilitate quick and easy onsite assembly. Allow your machine to handle the marking of essential details such as part numbers, quality information, track and trace codes, or reference lines, simplifying the process of fitting parts together.
